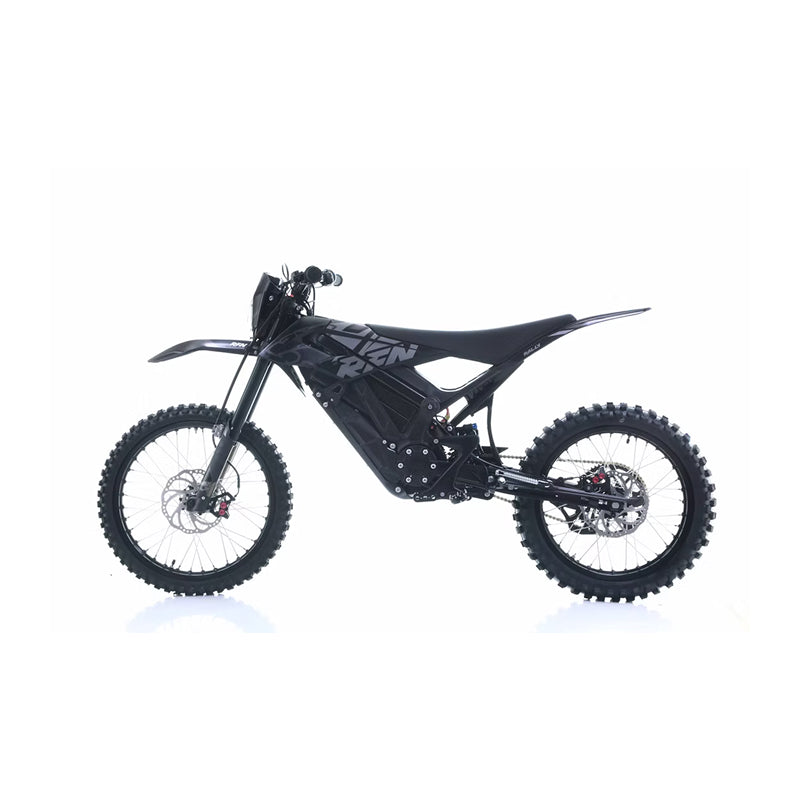

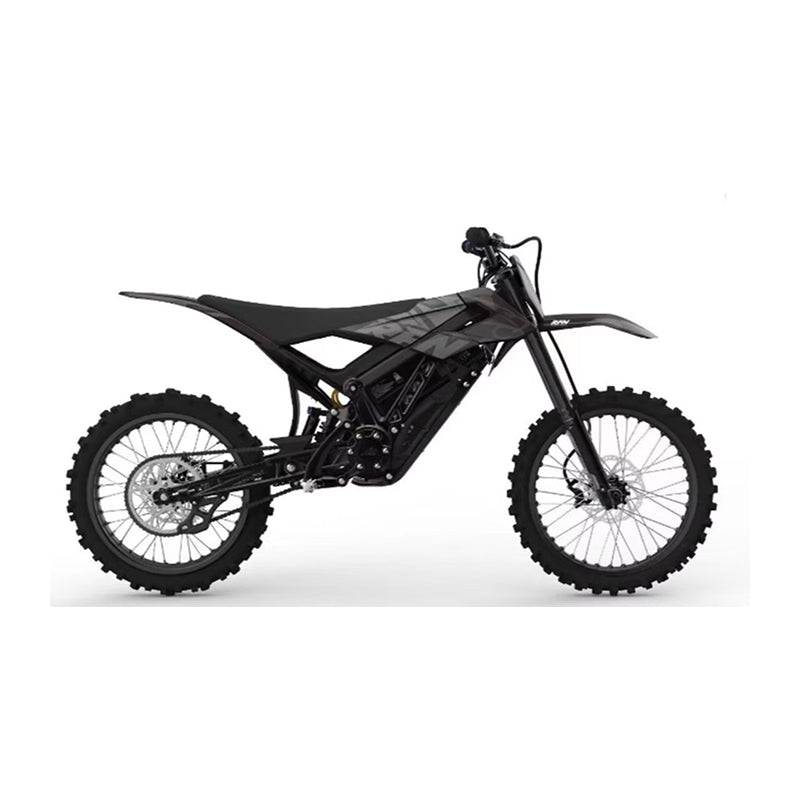

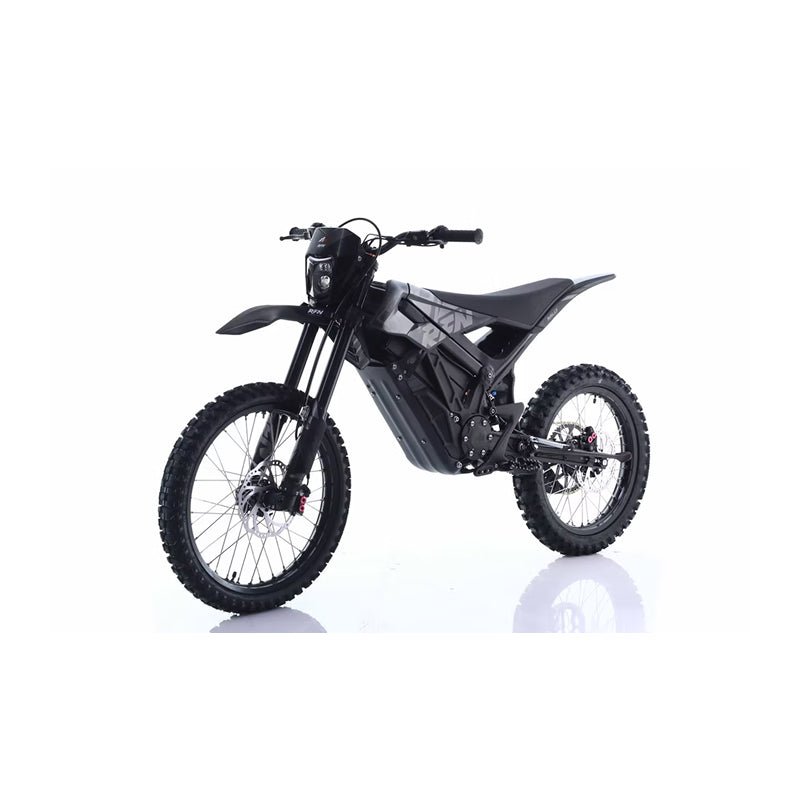

Ares Rally

💰 Note: Price is indicative. Contact us for accurate pricing.

Ready-for-anything electric enduro built around a removable 72V pack and a high-torque PMSM motor. Choose your mode (Turtle/Rabbit/Rocket/Reverse) and dial in fully adjustable suspension for trail, track, or urban scouting.

At-a-Glance

• City Range: up to 90 miles (manufacturer stated)
• Battery: 72V, 43Ah / 2,590Wh, removable
• Power: 5.0 kW nominal, 12.5 kW peak
• Front Suspension Travel: 200 mm (≈ 7.9")
• Wheel Size: F 19" / R 18"
• Drive: Chain, 11T / 58T

KEY FEATURES

• Removable 72V battery: charge on- or off-bike
• Internal-rotor PMSM electric motor with chain drive
• Four ride modes incl. Rocket (catapult start, peak 150A) and Reverse (to 9 km/h)
• Fully adjustable front and rear suspension
• Motorcycle-standard 19"/18" wheels with reinforced rims
• Quick-charge capable external charger (100–240V AC)

SPECIFICATIONS

Battery

• Capacity: 43Ah / 2,590Wh
• Voltage (nominal): 72V
• Cells: 18650 lithium cells
• Features: Removable; charge installed or separately

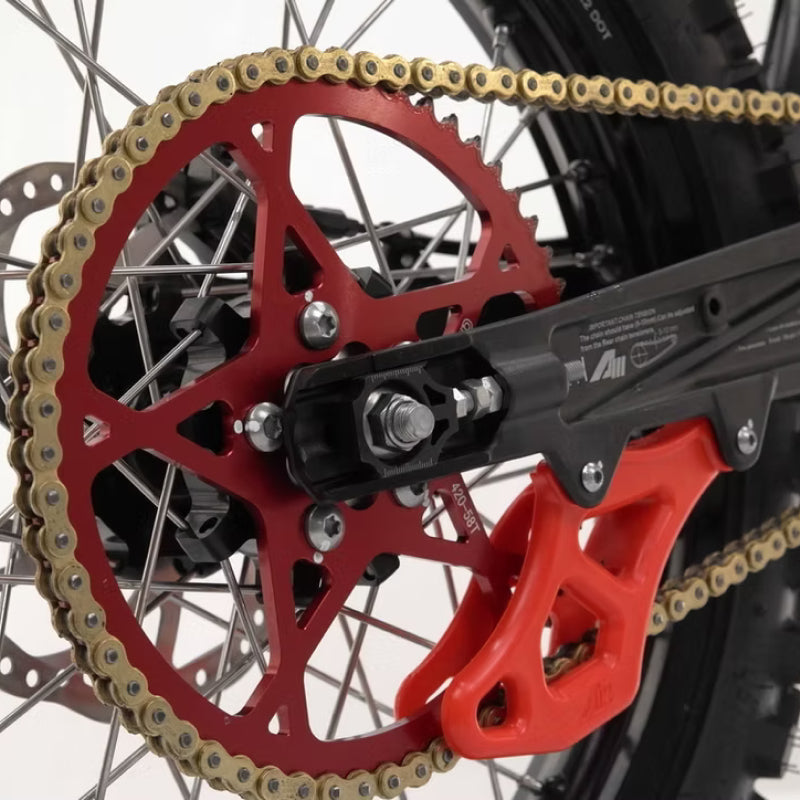

Drivetrain / Motor

• Type: Internal Rotor Permanent Magnet Synchronous Motor (PMSM)
• Drive: Direct, chain, right-side
• Chain: 420 chain with DX
• Sprockets: Front 11T / Rear 58T
• Power: 5.0 kW nominal / 12.5 kW peak
• Torque (motor axle): 69 N·m
• Torque (at wheel): 364 N·m

Charging

• 0–80%: 1–2 hrs
• 0–100%: 2–3 hrs
• Charger Type: Variable-voltage external (100–240V AC)
• Charging Input: Quick charging 5A @ 220V (AC)
• Charging Power: 840W @ 84V 10A (DC)

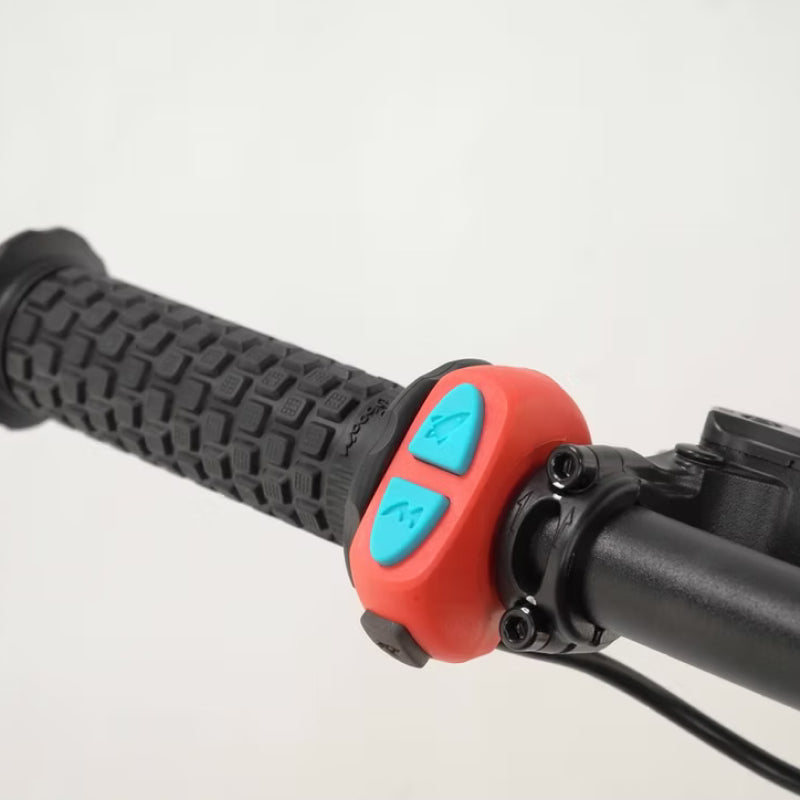

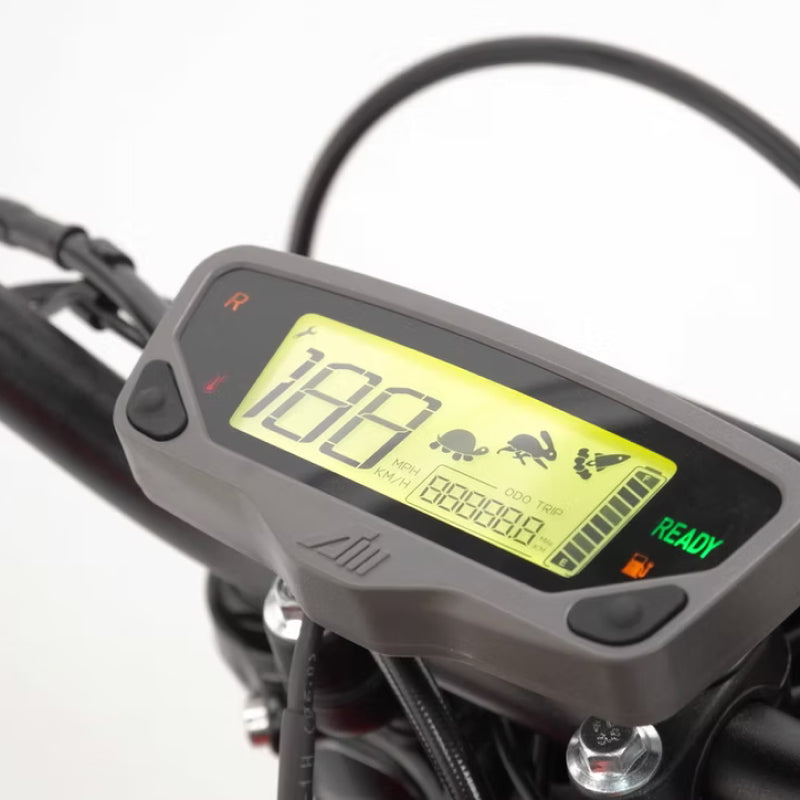

Ride Modes

• Mode 1 – Turtle: ~96 km @ 45 km/h (≈ 60 mi @ 28 mph)
• Mode 2 – Rabbit: ~50 km @ 78 km/h (≈ 31 mi @ 48 mph)
• Mode 3 – Rocket: Catapult start, peak current 150A, no time limit
• Mode 4 – Reverse: Limited to 9 km/h (≈ 5.6 mph)

Dimensions

• Fork Angle (rake): 24°
• Wheelbase: 1,330 mm (≈ 52.36")
• Seat Height: 860 mm (≈ 33.86")
• Ground Clearance: 320 mm (≈ 12.60")
• Offset: 15 mm in triple clamps; 45–48 mm in forks

Frame & Seat

• Main Frame: 6082 aluminum (extruded/forged + “iron” frame per mfr.)
• Rear Flat Fork: 6082 forged aluminum alloy, enhanced modularity
• Seat: Vinyl

Suspension

Front

• Type: USD air forks, 45–48 mm stanchions, double-shoulder adjustable damper
• Travel: 200 mm

Rear

• Shock: 240 mm with compression & rebound damping, spring preload adjustable
• Linkage/Travel Options:
  • 68 mm shock (≈ 180 mm wheel travel)
  • 59 mm shock (≈ 150 mm wheel travel)

Wheels & Tires

• Hubs: Forged & CNC aluminum RFN hubs, 20 mm axle
• Rims: F 19" / R 18", reinforced, straight-pull spokes, 7116 aluminum
• Tires:
  • Front: Kenda K783 70/100-19 (Off-Road)
  • Rear: Kenda K783 90/100-18 (Off-Road)
